Changing crank oil seal on 86 CUB (lots of pictures)

[Sugarmaker]

Originally Posted by _DX3_

Awesome post. It cleaned up nicely. Glad the PTO basket and pulley came off so easy. I always end up drilling two holes 180 degrees from each other thru the pulley and basket to use a 2 point puller to get it off with. I never thought about driving the key back towards the engine.

DWayne,
I was real lucky on how this basket came off. I like your idea to pull the basket. Do you have any pictures. I might need that trick sometime too. If the engine was out I think you could support the basket and drive the crank out with a air hammer too.
Regards,
Chris

[Sugarmaker]

Originally Posted by cubfan

Great step by step info and such personal restraint.I just can't tear into one like that and stop myself from doing at least a refurb.I need to learn to stop myself (lol).Thanks for all of the pic.

Cubfan,
Thanks!
Not sure about the restraint. But after meeting with a lot of other cub folks and working on some big tractors too, and getting a little older. I seem to be content with getting them working and then enjoying them in their work clothes. This 86 is going to be nice to have around.
I have a big tractor (AC WD) setting in the garage that has been apart for a year and a half. It takes a long time or lots of energy to restore them. The 147R and equipment that I worked on two years ago is still fresh in my mind. It would have been real easy to pull the engine in this 86. Then I would have had a bigger project! And more money required. This was about $30 and some time.
I was glad things went that well. All the oil and protective layers of grease helped!
Regards,
Chris

[Sugarmaker]

Originally Posted by zippy1

Retirement keeping you busy Chris?
Great play by play, you have always had a knack for picture taking.
I'm thinking we need to start calling you Mr. Clean great improvement on the engine area.

Todd,
I have learned from the master! Mr. ZIPPY1! Your restoration work has inspired many of us to get out there and dig in to save another Cub!

I should get another one of those nice seats you recommended for this 86!
By the way this seat pan is on the opposite way from a narrow frame

Loving the retirement thing. I was telling Cheryl I don't miss driving in to Erie each weekday. Gives me another hour a day to be on the computer, or enjoying hobbies, or spending time with the grand daughters. But we (you and I) don't talk as much, since I used that 1/2 hour of drive time to chat on the phone with you once in a while.

This 86 still needs some love and attention but can now function again.
Regards,
Chris

[mortten]

That belt is 3/8" wide by 32 5/8" long. I always use some #2 Permatex on the outside of replacement seals.

[Sugarmaker]

Originally Posted by mortten

That belt is 3/8" wide by 32 5/8" long. I always use some #2 Permatex on the outside of replacement seals.

mortten,
Well I missed the note on the premtex. Hope it holds as installed dry Great suggestion!
Regards,
Chris

[Jeff in Pa]

Originally Posted by Sugarmaker

DWayne,
I was real lucky on how this basket came off. I like your idea to pull the basket. Do you have any pictures. I might need that trick sometime too. If the engine was out I think you could support the basket and drive the crank out with a air hammer too.
Regards,
Chris

I'll put my pictures up Click all pics for large view

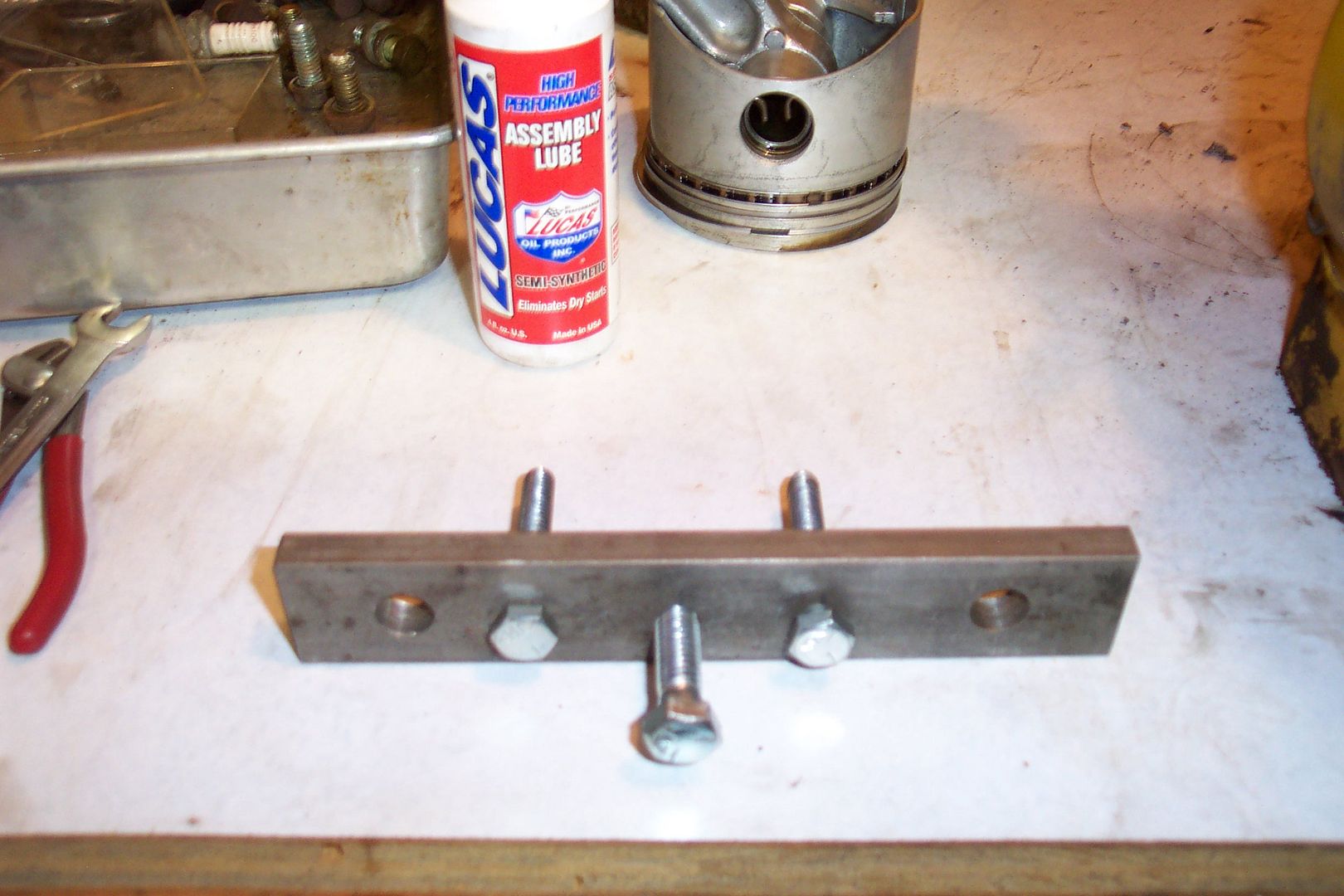

One home made flywheel puller

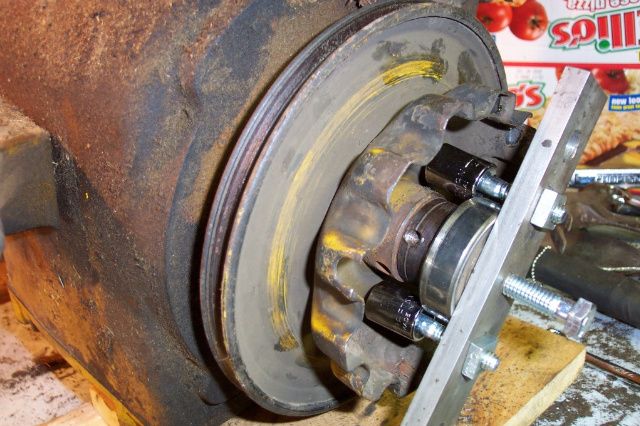

Using longer bolts and two 1/2" sockets with longer bolts makes a great PTO bearing puller

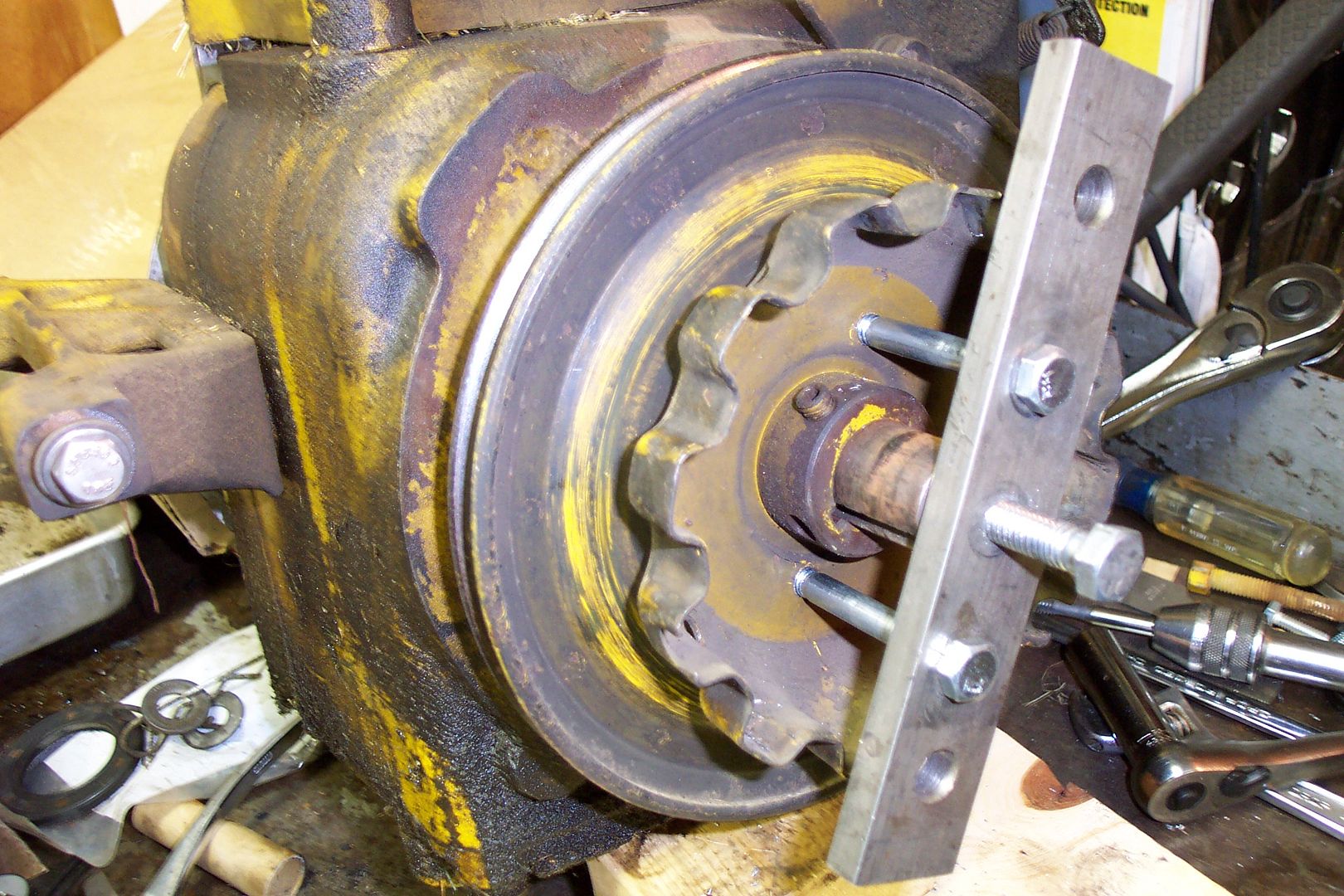

Drill and tap 5/16"-18NC into the pulley and pull it off


Jeff

[drglinski]

Thanks for taking the time to upload the pictures and write up the post. Looks a lot better.

[red56turbo]

Chris,
Super nice, original 86 you have there. Even the original muffler. Thanks for the pics and nice writeup. Just keep an eye on the seal. I, too like to put some sealer on the new seals when I put them in. If yours went in fairly snug, you should be good to go. Might wanna pull the breather and check/clean it as needed. Sometimes they plug and pressure will build up popping the seals out. Not saying that happened in your case, but an easy check.

[Sugarmaker]

Jeff, and Josh,
Great ideas on the pulling of the bearing and the basket. And I will take off the breather and clean it.
Will keep a eye on the seal.
Thanks.
Regards,
Chris

[_DX3_]

Here is a pic of the 128 starter pulley and pto basket I had to drill to pull.
Also the type of puller I used.
