Default Hobbs hour meter

Hey guys ...I'm trying to install a Hobbs hour meter in a 129 . The gauge has two posts on the back and does not even come close to fitting in the fiberglass panel hole . Anyone have any ideas on this? I looked at parts tree for an example but they don't show the gauges nor does the manual. What secures it to the panel ?

Thanks in advance
Reply With Quote
  #2
Old 04-28-2011, 05:22 PM
_DX3_'s Avatar
_DX3_ _DX3_ is offline
Grand Member

Join Date: Jun 2010
Location: Richmond, Kentucky
Posts: 5,798
Default

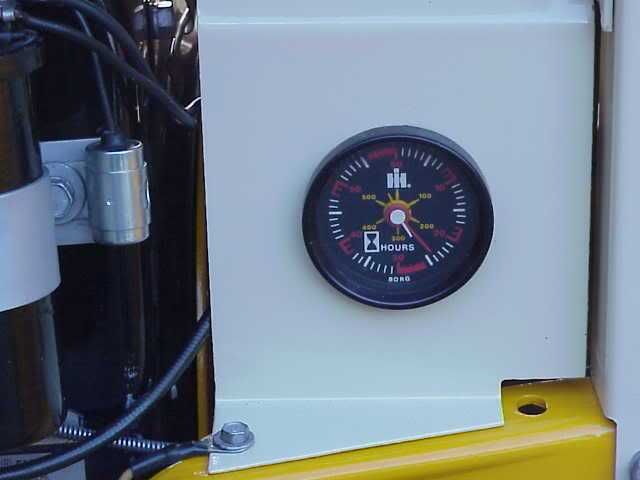

The 1X8/1X9 series had the hour meters installed in the left side engine panel. The 169 is the only one that came factory with an hour meter. A picture of your meter would help a lot. The side panel I am describing is just below the fuel tank, about 4 - 5 inches wide.

This is the location:
__________________
DWayne

1973: 128, ag tires, 3pt. lift, spring assist, lights, 42" Deck

10" moldboard plow

2016 XT1 42" deck 18HP
Reply With Quote
  #3
Old 04-28-2011, 06:26 PM
hydrocub hydrocub is offline
Senior Member

Join Date: Apr 2010
Location: VA
Posts: 162
Default

I beg to differ DX3 ....this came to me in pieces , but the meter was on on the right ...sorry , no cam right now ....
Reply With Quote
  #4
Old 04-28-2011, 06:28 PM
hydrocub hydrocub is offline
Senior Member

Join Date: Apr 2010
Location: VA
Posts: 162
Default

and I mean the fiber glass panel......
Reply With Quote
  #5
Old 04-28-2011, 11:58 PM
Southtowns27's Avatar
Southtowns27 Southtowns27 is offline
Senior Member

Join Date: Oct 2010
Location: NY
Posts: 157
Default

The posts on the meter should be marked + and -. The - goes to any good clean ground, the + goes to switched 12V power, you can use the + terminal on the coil. As far as it not fitting in the hole, how far off is it? If it were me and it's a working tractor (not a show piece) I'd just file/grind the hole out carefully until the new meter fits.
Reply With Quote
  #6
Old 04-29-2011, 07:57 AM
hydrocub hydrocub is offline
Senior Member

Join Date: Apr 2010
Location: VA
Posts: 162
Default

The PO said it was factory and in the hole . Just think I'm missing back up hardware
Reply With Quote
  #7
Old 04-29-2011, 09:29 AM
_DX3_'s Avatar
_DX3_ _DX3_ is offline
Grand Member

Join Date: Jun 2010
Location: Richmond, Kentucky
Posts: 5,798
Default

Not sure if this is the style of gauge you have but there is usually a U shaped bracket that fits on the back side of the gauge after the gauge has been slid thru the mounting hole. A nut on each post holds the U bracket in place and applies force to keep the gauge from moving. As for the PO comment about the hour meter being factory, that is not correct. The 1X8/1X9 dashes had a choke on the left side, an ammeter in the center and a hole on the right for a cigarette lighter, or was filled with a chrome button. All you can probably do is enlarge the hole wherever it is located to install the hour meter or pick up a new meter to fit if the hole is already @ 2" or so.

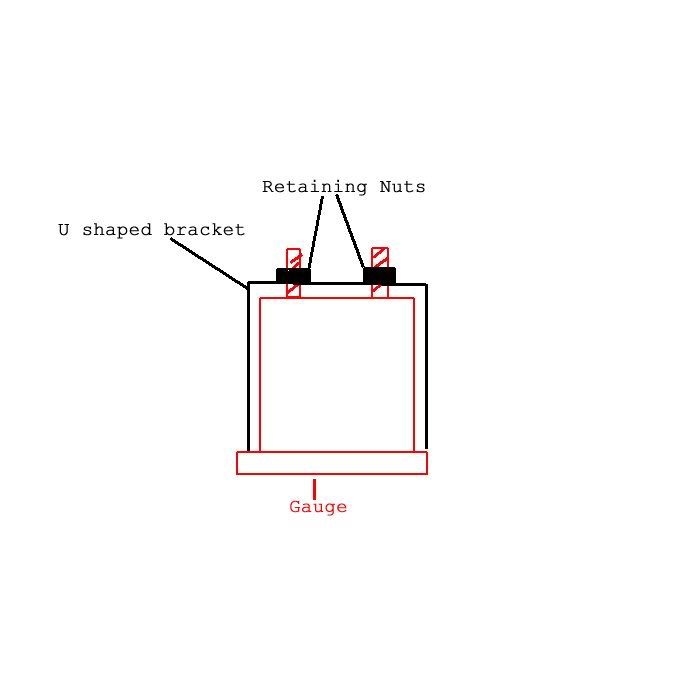

Here is a drawing I made to show the bracket:


This is the dash of a factory 1X8/1X9 as it should be with ammeter:
__________________
DWayne

1973: 128, ag tires, 3pt. lift, spring assist, lights, 42" Deck

10" moldboard plow

2016 XT1 42" deck 18HP
Reply With Quote
  #8
Old 04-29-2011, 09:36 AM
R Bedell R Bedell is offline
Founding Member

Join Date: Mar 2007
Location: Michigan
Posts: 13,693
Default

Quote:
The 1X8/1X9 series had the hour meters installed in the left side engine panel. The 169 is the only one that came factory with an hour meter. A picture of your meter would help a lot. The side panel I am describing is just below the fuel tank, about 4 - 5 inches wide.
DX_3 is correct. What he pictured, is the correct meter also.

Per the 1x8/9 Operators Manual, it cites the 169 is the only model in that series that had a Factory installed hour meter on the LH Panel.
Attached Images
File Type: jpg 1-129Dash.jpg (21.1 KB, 153 views)
File Type: jpg 1-169HM.jpg (16.2 KB, 153 views)
__________________
[B]Roland Bedell[/B]

CC Models: 100, 105, 1450, 782, (2) 784, & 2072

[SIZE="4"][B][COLOR="Red"]Buy:[/COLOR][COLOR="Blue"] Made in the USA[/COLOR][/B] [/SIZE]:American Flag 1:
Reply With Quote
  #9
Old 04-29-2011, 09:41 AM
Southtowns27's Avatar
Southtowns27 Southtowns27 is offline
Senior Member

Join Date: Oct 2010
Location: NY
Posts: 157
Default

You definitely have a non-stock hour meter by the sounds of it. Some pics would really help.
Reply With Quote
  #10
Old 04-29-2011, 10:27 AM
hydrocub hydrocub is offline
Senior Member

Join Date: Apr 2010
Location: VA
Posts: 162
Default

Wow...this is a strange one . Has about 544 hours on it . Wiring harness
looks to be unmolested with " factory type" tab connectors . Will try to
get some pics posted ...Also thought it was cool that the panel is stamped
7-9- 73 .....anyone else seen manu date stamped on the back side of
the panel ?
