Default 149 Hydraulics repair

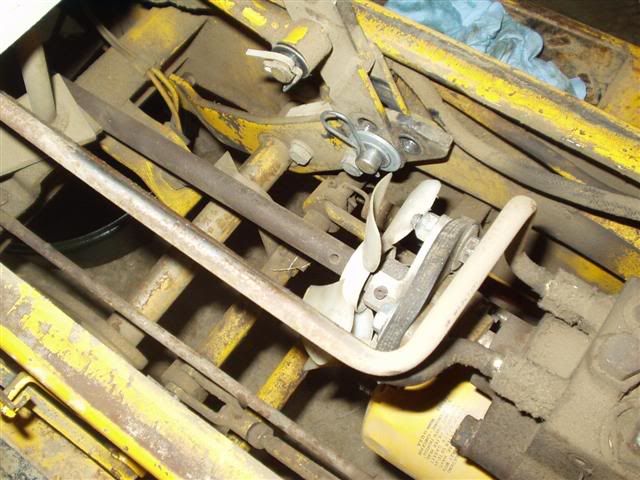

So, I noticed that my hydraulic lift was not working as usual. At closer look, I discovered that the pin that connects the connecting rod is missing. I guess the cotter pin rusted, and the bolt fell out. Does anyone know what size bolt this is and what is the best way to go about replacing it?
Attached Images
File Type: jpg Cub Cadet 149 Hydraulic lever.jpg (21.5 KB, 223 views)
Reply With Quote
  #2
Old 04-01-2011, 10:30 PM
westofb's Avatar
westofb westofb is offline
Senior Member

Join Date: Feb 2011
Location: Missouri
Posts: 533
Default

I think the pin you are missing actually is held in place by the lower of the the 2 cotter keys in your pic. I changed out my complete rock shaft a while back and am thinking the pin that goes in the middle hole has a flat piece of metal welded to it that has a hole in it that actually slides over the lower pin in your pic and is held in place by that lower cotter pin.
Reply With Quote
  #3
Old 04-01-2011, 10:40 PM
Mooner's Avatar
Mooner Mooner is offline
Senior Member

Join Date: Nov 2010
Location: Akron, Ohio
Posts: 313
Default

So, westofb, that makes sense. I've seen the parts diagram, and it does look like the pin has a flat piece of steel welded to it. Where would I find that part and what's the best way to get it back in? I couldn't find the size of the pin in the diagram. Really tight in that area, for sure!
Reply With Quote
  #4
Old 04-01-2011, 10:45 PM
_DX3_'s Avatar
_DX3_ _DX3_ is offline
Grand Member

Join Date: Jun 2010
Location: Richmond, Kentucky
Posts: 5,798
Default

I would call Patton acres.
__________________
DWayne

1973: 128, ag tires, 3pt. lift, spring assist, lights, 42" Deck

10" moldboard plow

2016 XT1 42" deck 18HP
Reply With Quote
  #5
Old 04-01-2011, 10:53 PM
Mooner's Avatar
Mooner Mooner is offline
Senior Member

Join Date: Nov 2010
Location: Akron, Ohio
Posts: 313
Default

DX3...good plan. That gives me an excuse to go to see Rich's gold mine again! lol
Reply With Quote
  #6
Old 04-01-2011, 11:36 PM
westofb's Avatar
westofb westofb is offline
Senior Member

Join Date: Feb 2011
Location: Missouri
Posts: 533
Default

Quote:
Originally Posted by _DX3_ View Post
I would call Patton acres.
Ditto, I am sure he can fix you up!

I can't remember for sure which side the missing pin goes in, but I am thinking it goes in from the frame side, if I recall it was a giant PITA, but you should be able to handle it.
__________________
Jeff
Brookfield, MO
________________
IH Red 782 with weights and sleeve hitch!
IH snow blade, Brinly plow, Brinly disk, Brinly harrow, Johnson rear blade, and a #2 IH Cart
Reply With Quote
  #7
Old 04-02-2011, 08:08 AM
Merk Merk is offline
Grand Member

Join Date: Mar 2009
Location: Ohio
Posts: 2,186
Default

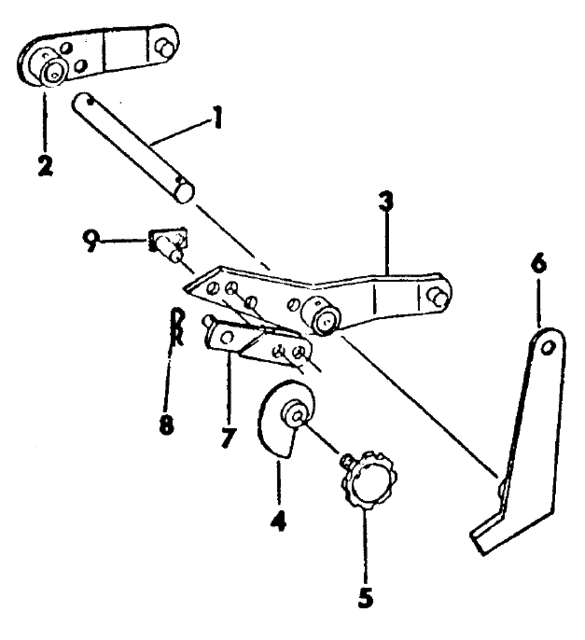

The pin in the middle is the float lock out pin. The float lock out in not used in normal use. Odds are the coil spring pin in #3 is broke.

Normal use:

Float lock pin in place:


The only time you need the lock out pin #9 is for down pressure.
Reply With Quote
  #8
Old 04-02-2011, 10:15 AM
Mooner's Avatar
Mooner Mooner is offline
Senior Member

Join Date: Nov 2010
Location: Akron, Ohio
Posts: 313
Default

Merk, so if I am understand you and the diagram correctly, the #9 pin occupies two holes?? Is that correct? I put a (smaller) bolt in the hole just to experiment, and the hydraulics seem to work fine. Does that tell me anything?
Also, I don't see the coil spring pin in #3. I love tinkering with these things!
Thanks for you help!
Reply With Quote
  #9
Old 04-02-2011, 02:47 PM
Merk Merk is offline
Grand Member

Join Date: Mar 2009
Location: Ohio
Posts: 2,186
Default

Quote:
by Mooner
Merk, so if I am understand you and the diagram correctly, the #9 pin occupies two holes?? Is that correct?
Put a load on it and odds are it will not work right if there is a problem. The lift has some float built into it so the attachment can float over uneven ground. Put some pressure against part #6. Them raise and lower the lift. Does your lift work?

The picture that has "normal use" above it is the way it should be when you are mowing your lawn or pushing snow for an example. It should pivit like in the picture.

The picture that has " Float lock pin in place: " is for down pressure only. There isn't a a good use for the float lock out pin. Some use it when they have a blade on. It is a good way to break the coiled pin in part number 6. THere are 2 pins in lift system when the float lock out pin is in place. Look under you Cub to see the coiled pin in #3.
Reply With Quote
  #10
Old 04-02-2011, 07:39 PM
Mooner's Avatar
Mooner Mooner is offline
Senior Member

Join Date: Nov 2010
Location: Akron, Ohio
Posts: 313
Default

Merk, how should it be set up for using my Brinly plow or rototiller? Float lock pin in place? I'm not going to use my 149 for mowing. I use the 1000 for that.
Reply With Quote
