1000 throw out bearing - which is correct?


I am rebuilding the clutch on my 1000 and have a question about the throw out bearing.

I am looking at a couple of sources for parts. I see two different throw out bearings. The first is shorter bearing P/N IH-391237-R91 or 941-3056:

http://i88.photobucket.com/albums/k1...psevvrsdfv.png

The second is longer and has a grease zerk. It is PN/ IH-106386-C91 or 703-0600:

http://i88.photobucket.com/albums/k1...psluvbtaz0.png

My tractor has a short round section that has a grease zerk on it.

Which throw out bearing should I get? I would think that it would be the short one since my clutch already has a zerk on it. I thought I would ask here before I bought parts.

There is a serial number break for using the longer one, not sure what it is though.

That one is the correct one

There is a break at Serial Number 612808 .

http://www.onlycubcadets.net/forum/s...&postcount=111

Not sure what parts it affects?:bigthink:

How's that?:biggrin2:

The 612808 serial number breaks apply to items, 8, 27, 28, & 29


The throw out bearing (item #3) is unaffected by the serial number range. This according to:

http://www.cubcadet-parts-direct.com/free-parts-search?gclid=CIL8yNDNobUCFVFgMgodj1cABQ#/Cub_Cadet/1000%2c_2050550U%2c_2050540U/Clutch/000800-A/0008000012

The exploded view from the link in post #4 has the parts in the wrong order. The service manual has a picture of the parts in their correct order.

Am I correct in thinking that the longer bearing is for later model tractors?

the longer one is used on the 82 series. my 89 1050 uses the long one.

i converted my 108 over to the longer one, when i bought my new driveshaft from jeff i had him skip that hole and i drilled it for the longer tob.

Thanks for pointing that out, from page 2 - 23 of the service manual;

http://www.onlycubcadets.net/forum/s...ead.php?t=4644

I took the clutch out this afternoon and disasembled it. This is what I have:

http://i88.photobucket.com/albums/k1...pst6iem4h3.jpg

Yes, I know the throw out lever is incorrect. The original got trashed when my brother kept using the tractor even though the bearing was locked up.

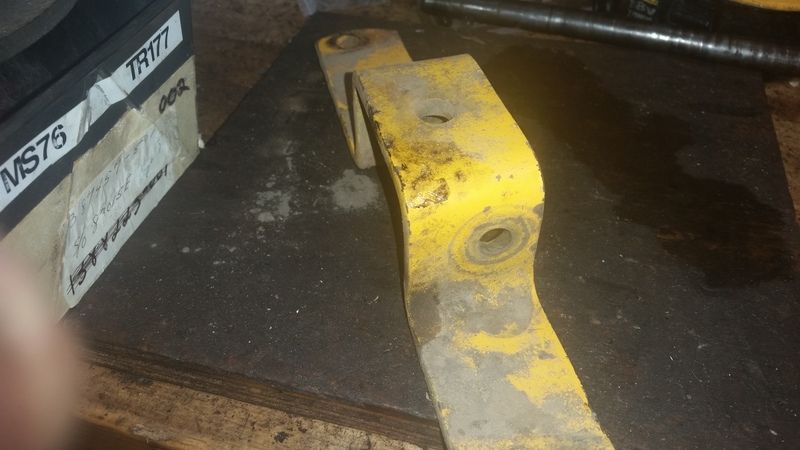

Hanger bracket:
http://i88.photobucket.com/albums/k1...psuywtpwgx.jpg

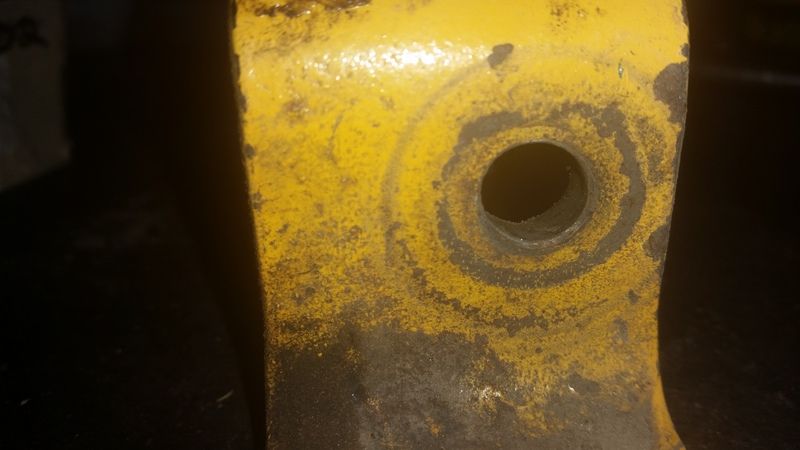

The hole used to be round:
http://i88.photobucket.com/albums/k1...psleof2yb7.jpg

I think I'll replace the pivot pin:
http://i88.photobucket.com/albums/k1...ps3nxsxc0g.jpg

I turned the pressure plates a couple years ago. They still look good:
http://i88.photobucket.com/albums/k1...psu8xpqy2y.jpg

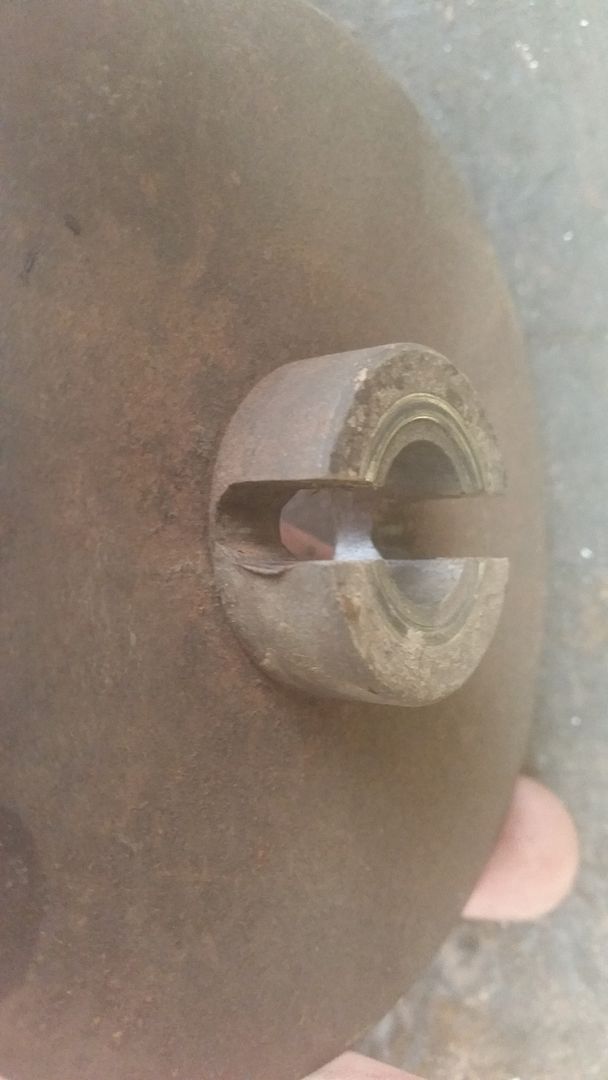

This doesn't look good:
http://i88.photobucket.com/albums/k1...ps9jadf9nc.jpg

The disc looks good. It was replaced two years ago:
http://i88.photobucket.com/albums/k1...ps6nmaxqfv.jpg

Pins out:
http://i88.photobucket.com/albums/k1...psivgjppxx.jpg

The teaser spring and cup were hanging up. When I stripped the parts off the shaft I found steps in it that were causing the clutch to not fully engage. This explains why the clutch was slipping:
http://i88.photobucket.com/albums/k1...psivgjppxx.jpg

http://i88.photobucket.com/albums/k1...psidl2ietm.jpg
