Questionable PO mods


With all the talk of PO (previous owner) modifications, I thought it would be a great idea to start a fun post of all the questionable things that were done to your Cub Cadet when you purchased it. This could be anything that seems out of the ordinary to you or anyone else. This is also meant to be a picture heavy post, maybe we can make it a sticky??

I'll start with my 147 when I got it in April.

Steering wheel cap was missing. Replacement? Spray paint lid.

http://i10.photobucket.com/albums/a1...27steering.jpg

The PO had a split tire and instead of replacing it he taped it. He also taped over a spit mower deck guide wheel AND a hole near the guide bracket. (cuz he didn't want grass getting on him.)

http://i10.photobucket.com/albums/a1...7/104_2333.jpg

Since the motor is out of a 149 (I suspect) the coil was mounted too high so the PO turned the fuel tank the wrong way and installed a longer fuel line. This caused a whole lot of headaches. Also in this picture; nuts welded on the hood in place of the rusted off hinge holes.

http://i10.photobucket.com/albums/a1...7/104_2335.jpg

Not really a MOD per se, but check out the lazy wiring. I fixed this.

http://i10.photobucket.com/albums/a1...i/104_2345.jpg

This picture shows three PO mods. The pin came out for the rod that connects to the PTO so a shower hook was installed. Also, a hole was drilled for a pin to set the mowing depth on the lift lever stop bracket, instead of tightening the nut down. Also, I don't know why the screen over the drive shaft has a cut out in it.
http://i10.photobucket.com/albums/a1...DSCF4477-1.jpg

One last one- an unnecessary noisy idler pulley that I suspect did more damage to the belt than did good. Also in the pic, two guide wheels that were installed that seem to work alright, but aren't necessary if the runners were still attached.

http://i10.photobucket.com/albums/a1...ski/ccbelt.jpg

If you can't fix it with Duct Tape it's beyond repair. Love the shower curtain hanger for a pin. :biggrin2:

at least they made a attempt at fixing it, both my 102 and the 125 are a mess. the hydro pump on the 125 was leaking out of the trunion shaft. so the po just gobbed a whole lot of black gasket material on it it seemed like a whole tube on both sides. the 102 has just plain to many hours on it and not near enough tlc.

102 clutch for short folks


This is one of the mods to the 102 I picked up. Welded on an extention for the clutch:biggrin2:
Also the PO stretched out the battery box for a bigger one:bash2:
Oh, and let us not forget the on-off switch in front of the battery box to.

Amazing what some people will do, some fixes can't even be considered as noteworthy. But heck they are quick easy band-aid jobs to keep'em running??

Nik,

I've had a battery box or 3 look like that before. It's actually pretty easy to put back the way it belongs.

It's amazing what PO's have done to the cubs through the years.

Did you know you have your battery in backwards?

My book on po mods is coming soon...

Who has their battery in backwards?

You do...
The battery hold down goes on the front edge of the battery towards the gas tank.

I'll just let the pictures do the talking here....

Everybody knows I prefer mine to be bone stock and all Cub Cadet at all costs!!

http://i1104.photobucket.com/albums/...D7K_0854-1.jpg

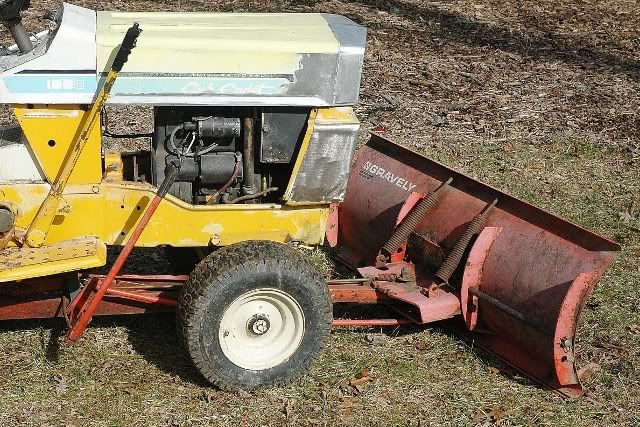

http://i1104.photobucket.com/albums/...0x427-Copy.jpg

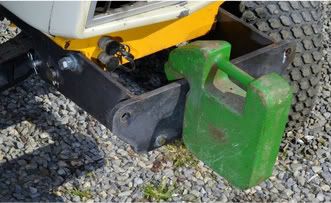

http://i1104.photobucket.com/albums/...2/D7K_0780.jpg

http://i1104.photobucket.com/albums/...016640x423.jpg

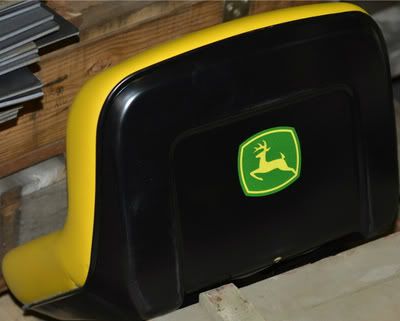

http://i1104.photobucket.com/albums/...801024x678.jpg

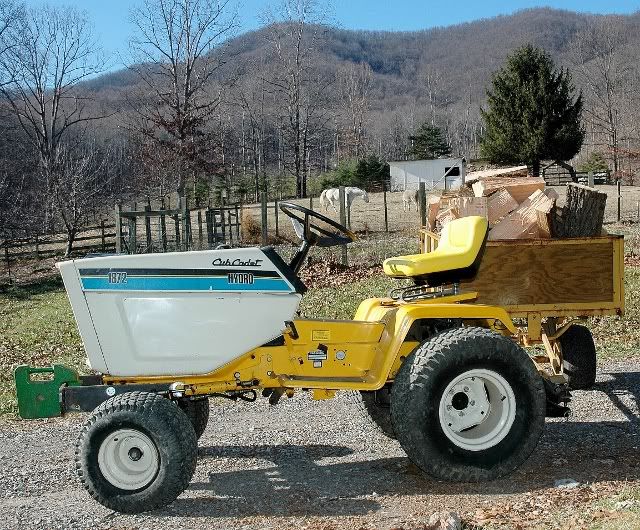

http://i1104.photobucket.com/albums/...032640x530.jpg

http://i1104.photobucket.com/albums/...014640x459.jpg

:biggrin2:

Boy, the next generation will have fun posting about trying to correct these PO mods!!
:bigeyes:

Here they unhooked the hydro lever and converted it to a foot pedal, I did work well, two springs hold it in the neutral spot

There was a pedal control at one time. I want one of those! I'm sure there are several people that would want the foot control if you ever want to part with it.:beerchug:

Hard to beat the pedal control if you have a loader. I do like that idea.

Cad
I gotta get a JD seat for one of my Supers. :biggrin2:

That foot control is on a customers 123, It did work well, alittle to jerky thou, I think two small shocks for a truck topper would smooth it out.

I ain't sayin' that seat is a prize possession or nothin', but,

I would trade that seat for one of your other Supers!! :biggrin2:

http://i1104.photobucket.com/albums/...1024x681-1.jpg

Here's how I live my life!

AJ

Cad

The seat is cool but trading it for one of my Supers, well you have a better chance of seeing God, LOL :biggrin2:

That's was Lewis's old tractor :bigthink:

AJ, Your flow chart pic is priceless. Seriously...I think you downloaded it out of my brother's brain. Love it !!!
