#1
11-05-2009, 08:08 PM
|
||||
|
||||
Plow types...
Just wondering if anyone has ever seen a 2 or 3 furrow plow for a Cub? I so do you have any pictures of it?
|
|
#2
11-05-2009, 08:19 PM
|
||||
|
||||
theres a video of a 100 i think on youtube pulling a 2 bottom plow
__________________
Nick.  Cub cadets 100, 125, 86, 108, 109, 128, 129, 129, 149, 149, 169, 1450, 1650 and a handfull of parts tractors. #40 box blade, ih back blade, rear ih rock rake, #2 cart, windbreaker soft cabs, windbreaker hard cab, cozy cab, kwikway loader , wards corn planter, brinly plows, culitvator, rear blade, disc and the usual decks, snowblowers and 2 tillers
|
|
#3
11-05-2009, 08:20 PM
|
|||
|
|||
|

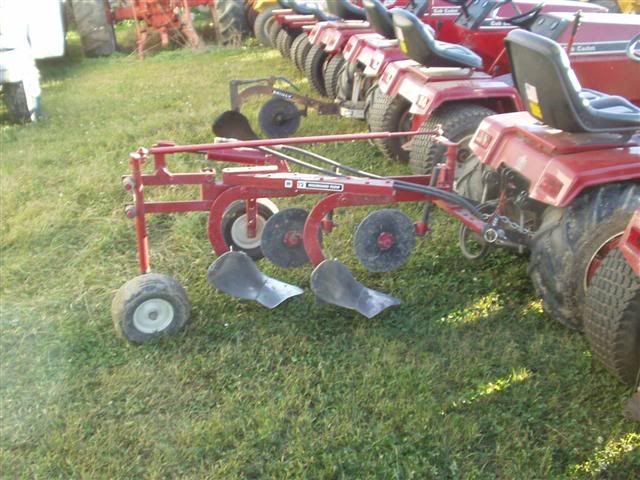

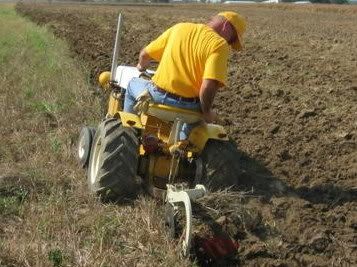

Here are 2 different types
  Only picture I have of this one:  I know someone who has a pull type 2 bottom plow. There is a gent who has a JD 430 that pulls a three point hitch two bottom plow(10 inch bottoms). Both look like a factory set up. I don't have a picture(s) of them.
|
|
#4
11-05-2009, 10:48 PM
|
||||
|
||||
|
Not to sound negative. But I have a question on the 2 bottom plow. I have been wanting to get either a plow and disc's or a tiller so I can do my garden. Do or can our cubs pull a 2 bottom fast and deep enough to be effective?
joe
__________________
Sold everything but one. 1211-snow pusher, cab ,54 inch plow, loaded tires (all 4) Gilson wheel weights, X-trac fronts- soon to have power steering and dual hydraulics
|
|
#5
11-06-2009, 07:08 AM
|
||||
|
||||

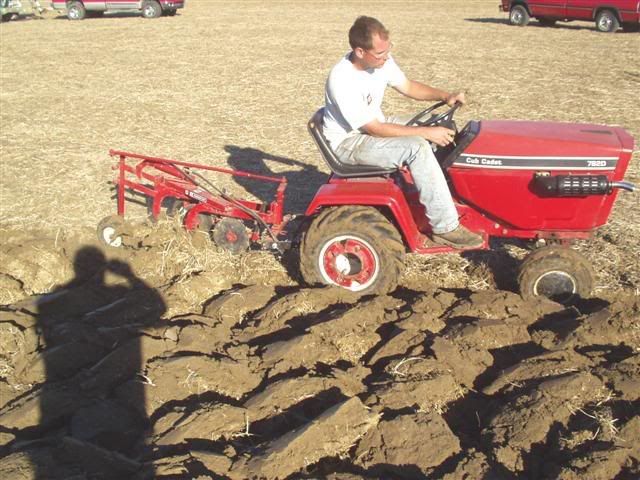

 That is exactly what I am wondering - if they are (which the 782D in the picture shows), I think it would be cool to have one. I have never seen any on the web except for the pictures just posted - they have all been 1 furrow plows. I was really thinking if you could get the traction with duals on both sides, you could likely pull a 3 or 4 furrow "on land" plow. The articulating tractor that is on extreme motor works site, with the duals all the way around should be able to. Throw some ags on it instead of turfs, hook up a 4 furrow on land plow and you would be away to the races! Imagine showing up at a plow day with that unit, there would be a lot of heads turning and head scratching over it!
|
|
#6
11-06-2009, 10:17 AM
|
||||
|
||||
|
Keep in mind that the CCO is not stock, and has a Kabota diesel in it :biggrin2.gif:
Search cub cadet plowing on you tube and he has a few vids up..
__________________
Jay N. Eau Claire, WI RED 82 Series... The BEST cure for Yellow fever!
|
|
#7
11-06-2009, 12:53 PM
|
|||
|
|||
|
Quote:
The Orginal has a 20 horsepower Kohler gas motor in it. Quote:
Quote:
Both plows have 8 inch wide bottoms. Normal plow depth is half the plow width which means they are only plowing 4 to 5 inches deep. I will plow a 10 inch wide section 5 to 6 inches deep with my single bottom 10 inch plow. Most times I need to plow deeper than 4 inches. My tiller will go 4 inches deep when using it. I have a friend that has a JD 430 that pulls two 10 inch plows. This tractor has around 35 horsepower in it and a 2 speed locking diff in the rear. This tractor weighs 1500 pounds. He has problems pulling that plow at a plow day in my area. The power is there...traction is not. The articulating tractor that is on extreme motor works site, with the duals all the way around will have traction problems with some ags on it. Weight seems to be the problem.
|
|
#8
11-08-2009, 07:55 PM
|
||||
|
||||
|
What about a decent set of disc's? I know Cub61 has a nice set, but the only downfall his are manually lifted. Can you get a good set of disc's that run off the 3pth that will still cut up the soil good or do you need to go to a pull type with some weight on it?
|
|
#10
11-09-2009, 11:52 AM
|
||||
|
||||
|
Land plows work on tractors, but they are the first to have to leave the field when it gets muddy and have traction issues even with 8 big tires. The furrow provides the tractor excellent traction with a differential lock and left side duals. Personally, I do not think they are that great, especially on two wheel drive tractors like Cubs.
To provide some back ground on this, I was helping a farmer plow his field while the ground was frozen, there were three tractors: 4 wheel drive articulating Tractor with a land plow Front wheel assist tractor with a furrow plow 2 wheel drive tractor with a furrow plow When the ground started to thaw, the 4 wheel drive tractor was the first to go, there was little traction in the mud and no tires in the furrow. Then, the 2 wheel drive tractor could stay in the field due to traction in the furrow, but it also got too muddy. The Front wheel assist tractor lasted the longest.
__________________
CC 104
|
|
|
|
